Fiberfrax Durablanket® S | Ceramic Fiber Mats
The Fiberfrax Durablanket product group stands for needled lightweight mats made of ceramic Fiberfrax fibers and effective solutions for a wide range of thermal insulation applications.
- TEMPERATURE RESISTANCE
- 1250°C KFT
- Ceramic fiber | Aluminum silicate wool
- PRODUCT TYPE
- Mat (blanket)
- Thickness (mm)
- 13mm 19mm 25mm 38mm 50mm
- Density / volume weight (kg / m³)
- 64 kg / m³, 96 kg / m³, 128 kg / m³, 60 kg / m³
Excellent handling / processing strength.
Resistance to temperature changes & resistance to chemicals.
Low thermal conductivity & heat storage.

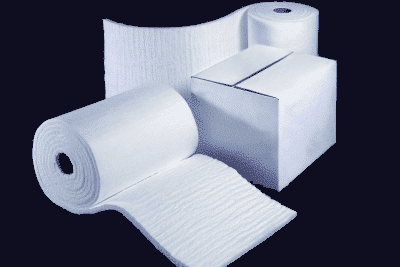

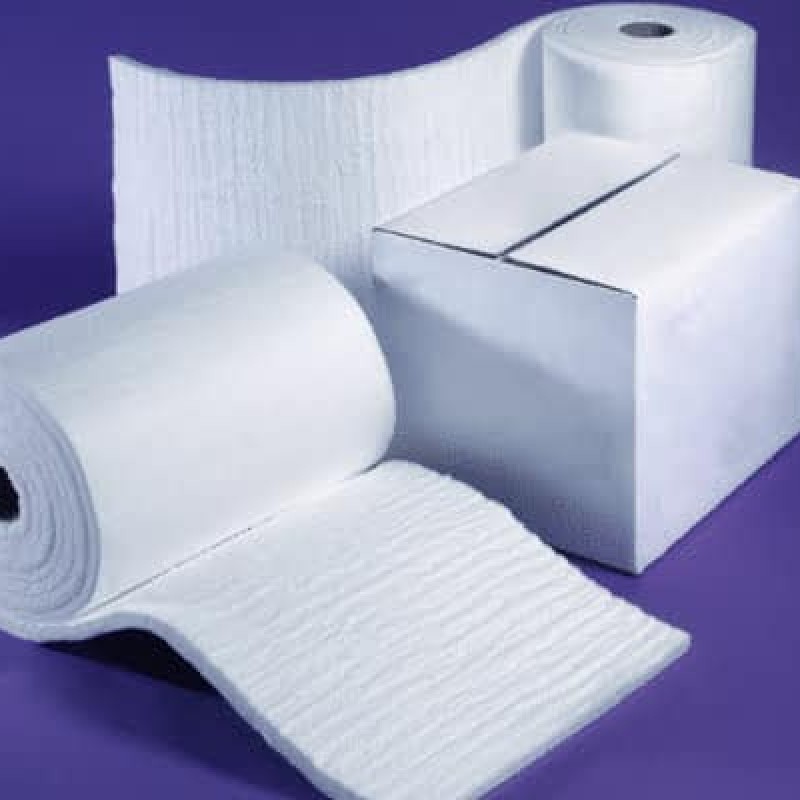

Fiber mats are sold as roll goods as standard. The roll length depends on the selected thickness. As a standard width, we have 610mm wide rolls from stock. Double widths are available on request.More

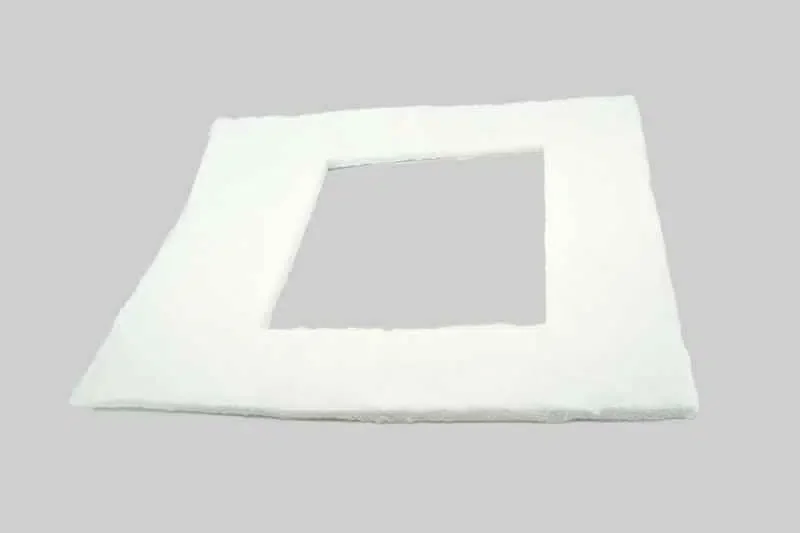

We manufacture molded parts according to your specifications. The roll goods are made using
brought into the right shape for you.More

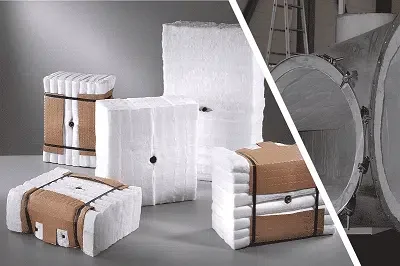

We manufacture fiber modules according to customer specifications that are designed for the insulation requirements of industrial ovens, kilns and heating devices.More
SiO2: 53,0 – 58,0 Al2O3: 4,0 – 47,0 Alkalis: <0,25 Fe2O3: <0,2 Physical Properties Colour: White Classification temperature (° C): * 1250 Melting point (° C): 1760 Mean fiber diameter (My): 3,25 Specific heat at 1000 ° C (J / kgK): 1140 Permanent linear shrinkage (%) after 24 hours 1250 °C: 2,6 Volume weight (kg / m³) 64 96 128 160 Thermal conductivity (W / mK) Average temperature 0,18 0,14 0,12 0,11 800°C 0,27 0,22 0,18 0,16 1000°C 0,42 0,36 0,28 0,21 Tensile strength (kPa) 35 55 75 95
The Fiberfrax Durablanket product group stands for needled lightweight mats made of ceramic Fiberfrax fibers and effective solutions for a wide range of thermal insulation applications. Fiberfrax Durablanket products are characterized by excellent insulating properties, high resistance to chemicals, elasticity and dimensional stability. They are exclusively inorganic and thus achieve their dimensional stability, elasticity and thermal insulation properties in many areas of application without the occurrence of smoke or vapors. They are available in a large number of density and thickness combinations and thus represent one of the most versatile product groups on the market.
- High temperature resistance
- Low thermal conductivity & heat storage
- High tensile strength & elasticity
- Thermal shock resistance & durability
- Good sound absorption
RBS Kompensator GmbH
In 2009, at the request of many customers, RBS Kompensator GmbH was founded as the 100% sister company of KS Kneissl & Senn Technologie GmbH under Senn Beteiligungs GmbH.

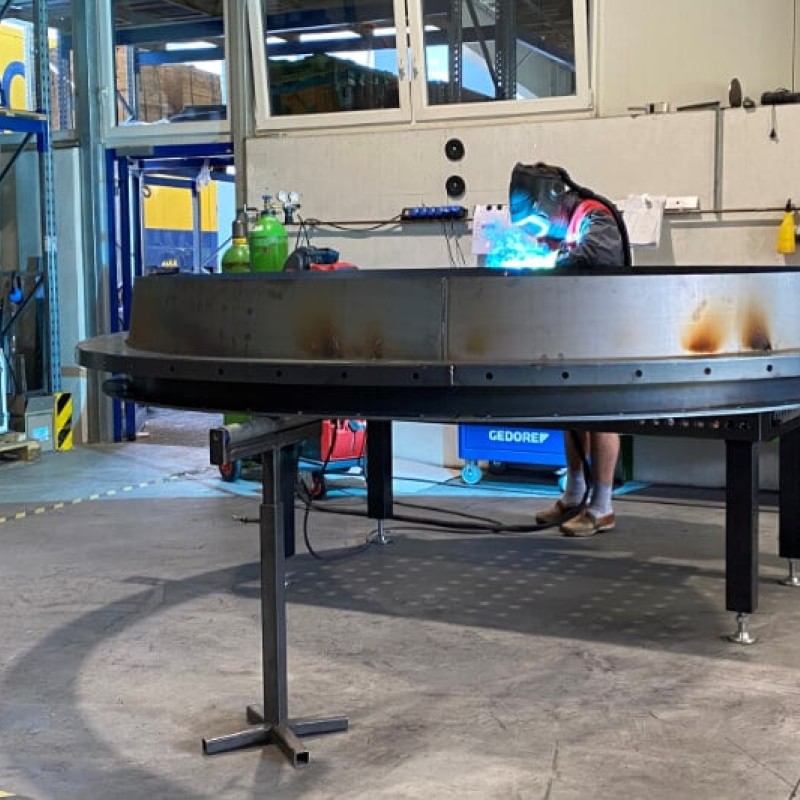

Building on the existing know-how about temperature-resistant high-performance fabrics, these began to be manufactured as individual pieces in the form of soft-material compensators by hand in Erl. Gradually, various sewing and welding machines were acquired in order to be able to produce all common shapes (round / square / round on square etc.) in the best possible way.
